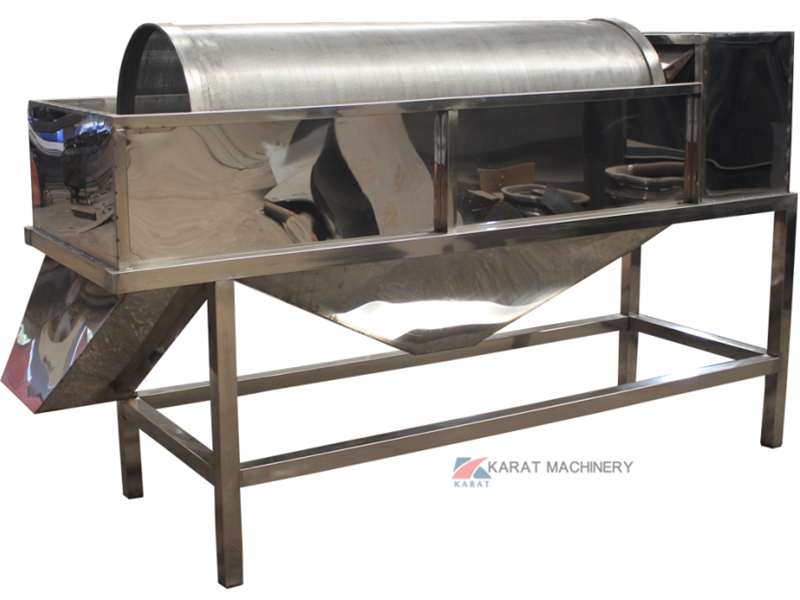

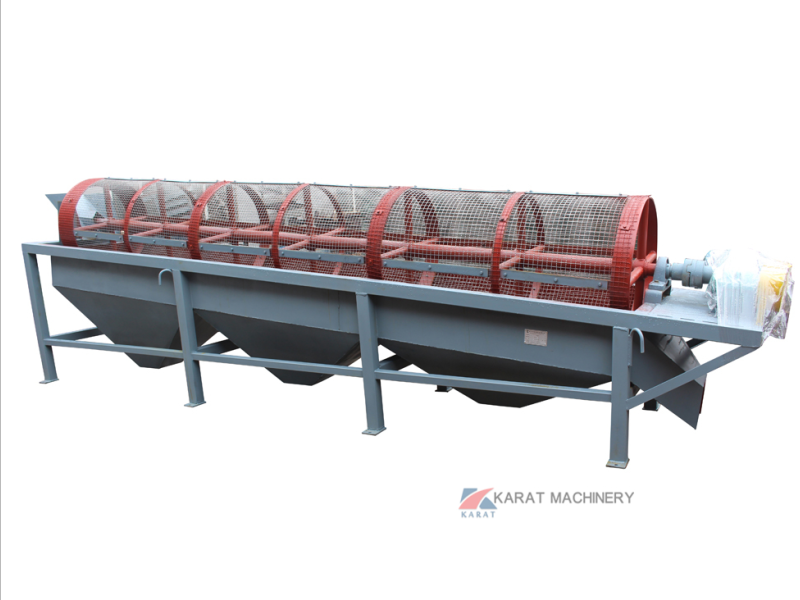

Trommel screen
Trommel screen trommel drum sieving machine is cylindrical drum,which is inclined and installed on the frame.The geared motor is connected to the drum device through a coupling,the driving drum will rotate around the axis directin.
Feature
1. Designed to fit your operation- Trommel screen can be customized to meet different capacity and working site . 2. Free from pollution- Fully enclosed structure,no dust pollution,improve working conditions for operators as well. 3.Variable application range-Compost,chemical,coal,plastic,recycling,metallurgy,mineral-selecting etc. 4. Superior design-Simple structure,easy maintenance,steady operation,low energy consumption.
The following table shows the detailed data of trommel screen trommel drum sieving machine for you to refer.
| type | Length range （m） | Screen number | Mesh range （mm) | Power of motor （kw） | inclination (angle） | Material quantity（mm) | trommel speed（rpm) | Handling capacity（m³/h） | quality | Outline dimension |
| YTSΦ600 | 2-4 | 1-3 | 5-35 | 2.2-3 | 7° | 35 | 20 | 10 | 1.6 | 5400*1150*1200 |
| YTSΦ800 | 2-4 | 1-3 | 5-40 | 2.2-5.5 | 7° | 45 | 18 | 14 | 2.4 | 5600*1300*1500 |
| YTSΦ1000 | 1-4 | 1-4 | 5-45 | 3-7.5 | 7° | 60 | 16 | 16 | 4.2 | 7400*1400*2240 |
| YTSΦ1200 | 2-8 | 1-4 | 5-50 | 4-11 | 7° | 70 | 15 | 20 | 5.8 | 9480*1580*3400 |
| YTSΦ1500 | 2-8 | 1-4 | 5-55 | 4-15 | 7° | 80 | 12 | 32 | 7.2 | 9700*1860*3700 |
| YTSΦ800 | 2-8 | 1-4 | 5-60 | 5.5-18.5 | 7° | 90 | 8 | 45 | 11 | 1100*2400*4500 |

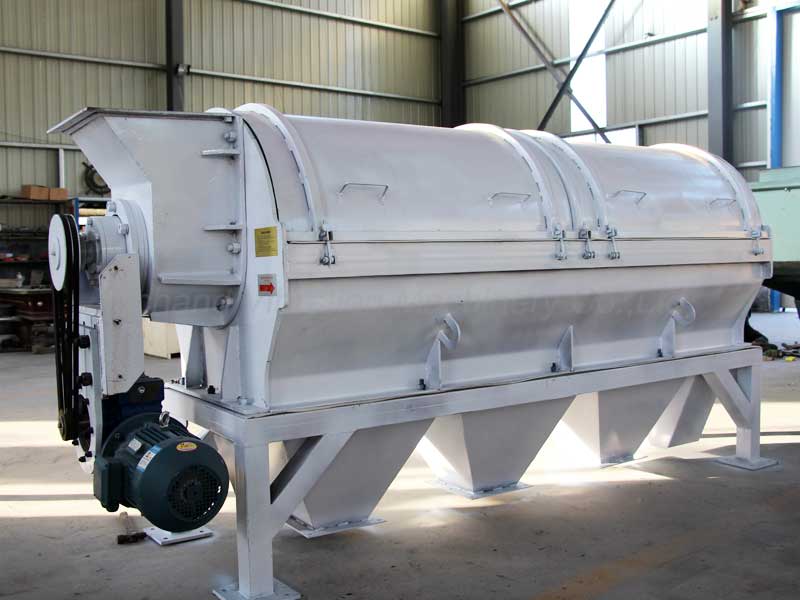

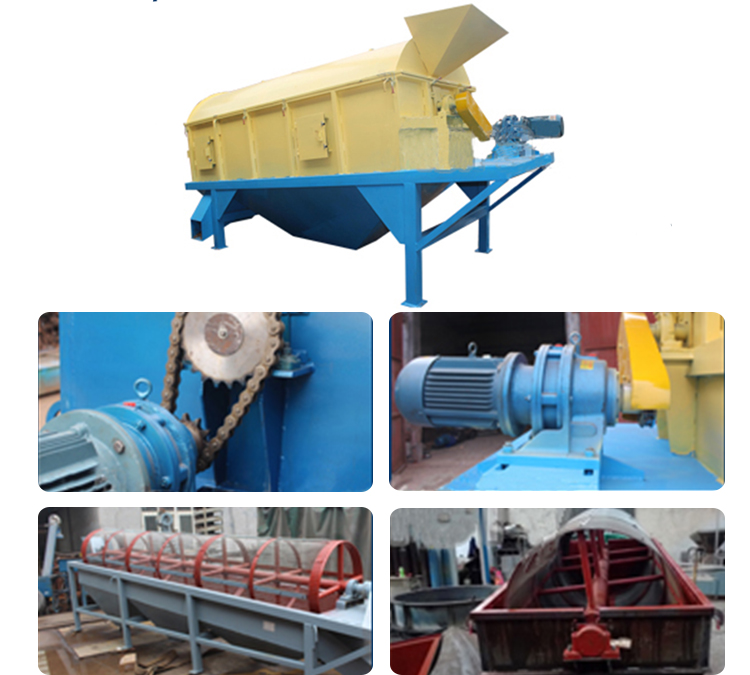

Product show
Application

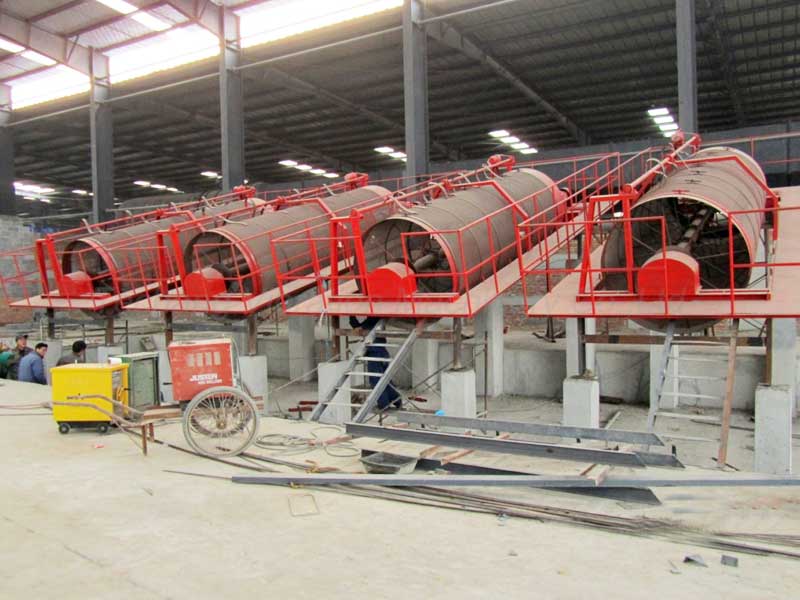

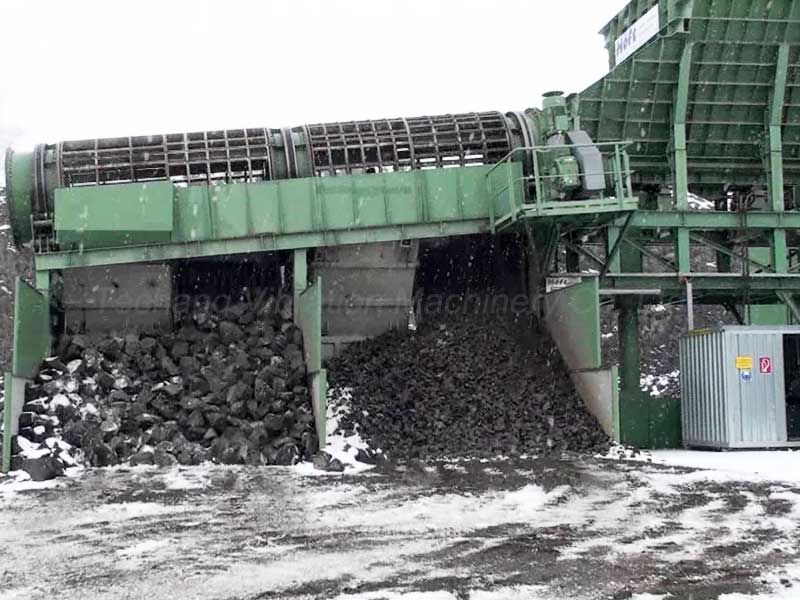

Trommel screen are widely used in construction, chemical, ore, mining industry.
Trommel screen are widely used in construction, chemical, ore, mining industry.
Karat Machinery Equipment Co., Ltd is located in Xinxiang City--the hometown of China's vibrating screen. It is a professional manufacturer of screening and conveying equipment. Our company is specialty in the development and sales of vibration machinery, screening equipment, conveying equipment and lifting equipment. Our company produces a series of products as follows: rotary Vibrating Screen, screw conveyor, ultrasonic round separator, rectangular separator, vibration table, drum screen, standard laboratory inspection sieve, straight line vibrating screen, vibration motor, vibrating conveyor, feeding machine, hoisting equipment, belt conveyor. All of our production are widely used in food, pharmaceutical, chemical, metallurgy, building materials, mining, thermoelectric, environmental protection and other fields. And our company's business covers all parts of the country, and is exported to the United States, France, Canada, Russia, Australia, Japan, Singapore, Malaysia, India, Vietnam and other countries.
.jpg)
.jpg)
Packaging & Shipping
Rotary Vibrating Screen is packed by wooden case or according to the customer's requirements.
Rotary Vibrating Screen is packed by wooden case or according to the customer's requirements.
.jpg)
We have many customers form all over the world and we have become very good friends in good communication.
FAQ
Q: What information do you need to provide us to getting an accurate quotation for Food grain small rotary trommel screen trommel drum sieving machine? A:1.Your material's name,bulk density,and water content 2.How many layers are you need?And what's the screen mesh size for each layer? 3.Capacity you required___kg/hour 4.Voltage and frequency
Q: How long for the delivery time?
A: 5-10 working days for conventional products.
Q: How long for warranty time?
A: 12 months from the shipping date
Q: Can your engineer come to the construction site to guide the installation?
A: Yes, we can arrange our engineer to guide your installation, and salary is 150USD per day for one person, the air ticket/ visa/local accommodation/ local traffic is in charge of customer.
Generally there is no need to send our engineer to guide, because we will provide detailed installation drawings to the customer,the customer only need to find special installation team to execute.
| type | Length range （m） | Screen number | Mesh range （mm) | Power of motor （kw） | inclination (angle） | Material quantity（mm) | trommel speed（rpm) | Handling capacity（m³/h） | quality | Outline dimension |
| YTSΦ600 | 2-4 | 1-3 | 5-35 | 2.2-3 | 7° | 35 | 20 | 10 | 1.6 | 5400*1150*1200 |
| YTSΦ800 | 2-4 | 1-3 | 5-40 | 2.2-5.5 | 7° | 45 | 18 | 14 | 2.4 | 5600*1300*1500 |
| YTSΦ1000 | 1-4 | 1-4 | 5-45 | 3-7.5 | 7° | 60 | 16 | 16 | 4.2 | 7400*1400*2240 |
| YTSΦ1200 | 2-8 | 1-4 | 5-50 | 4-11 | 7° | 70 | 15 | 20 | 5.8 | 9480*1580*3400 |
| YTSΦ1500 | 2-8 | 1-4 | 5-55 | 4-15 | 7° | 80 | 12 | 32 | 7.2 | 9700*1860*3700 |
| YTSΦ800 | 2-8 | 1-4 | 5-60 | 5.5-18.5 | 7° | 90 | 8 | 45 | 11 | 1100*2400*4500 |
1. Functions: configured as classification, screening and grading

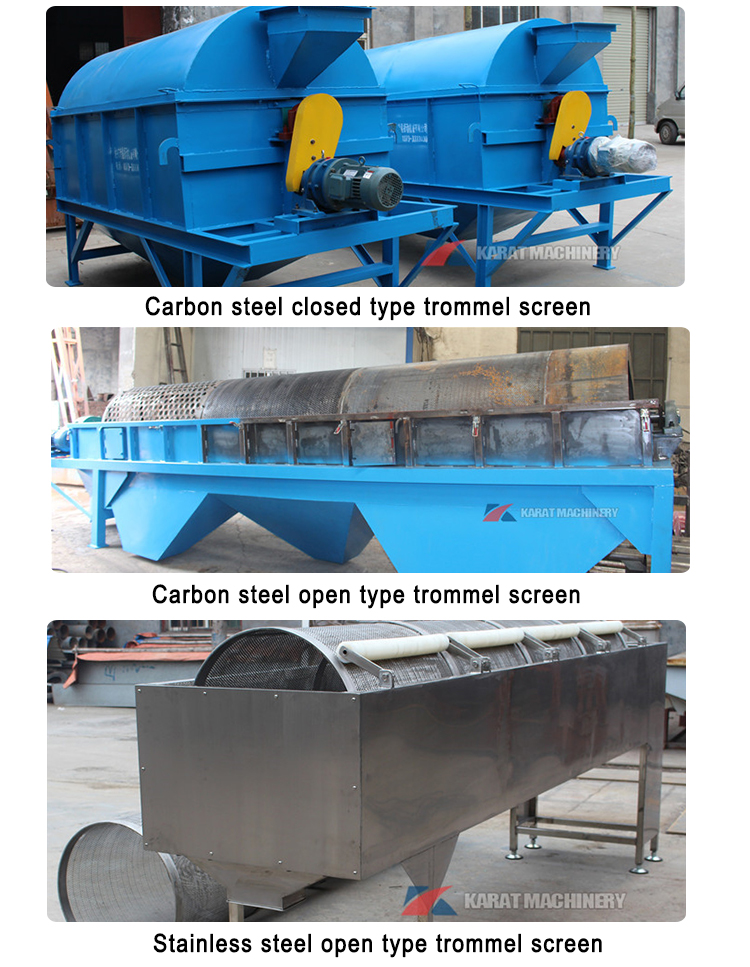

2. Types: open and closed types
3. Structure: carbon steel, stainless steel
Advantages
1. Wide adaptability of materials
The Trommel Screen is widely used in screening of various materials, regardless of fault coal, coal slime and soot and other materials, they are all screened smoothly.
2. High screening efficiency
It is equipped with comb-type screen cleaning mechanism, no matter how dirty and miscellaneous the materials that have entered into the screening drum during screening, thus increasing the screening efficiency.
3. Large screening volume, easy for large scale
Under the same size, the area of a circle is larger than that of any other shape, so the effective area of its screening is larger, materials can fully touch screen cloth, thus the screening capacity in unit time is larger. It is also easy for large scale due to simple structure and convenient arrangement.
4. Good working environment
The whole screening drum can be sealed with sealing isolation hood, thus reducing the noise of equipment, and thoroughly remove dust flying, lump splashing during screening circulation process, avoiding pollution to working environment.
5. Convenient maintenance
The upper sealing isolation hood can be taken apart, which does not affect the normal operation of machine, and allows very convenient maintenance
2. Types: open and closed types
3. Structure: carbon steel, stainless steel
Advantages
1. Wide adaptability of materials
The Trommel Screen is widely used in screening of various materials, regardless of fault coal, coal slime and soot and other materials, they are all screened smoothly.
2. High screening efficiency
It is equipped with comb-type screen cleaning mechanism, no matter how dirty and miscellaneous the materials that have entered into the screening drum during screening, thus increasing the screening efficiency.
3. Large screening volume, easy for large scale
Under the same size, the area of a circle is larger than that of any other shape, so the effective area of its screening is larger, materials can fully touch screen cloth, thus the screening capacity in unit time is larger. It is also easy for large scale due to simple structure and convenient arrangement.
4. Good working environment
The whole screening drum can be sealed with sealing isolation hood, thus reducing the noise of equipment, and thoroughly remove dust flying, lump splashing during screening circulation process, avoiding pollution to working environment.
5. Convenient maintenance
The upper sealing isolation hood can be taken apart, which does not affect the normal operation of machine, and allows very convenient maintenance
