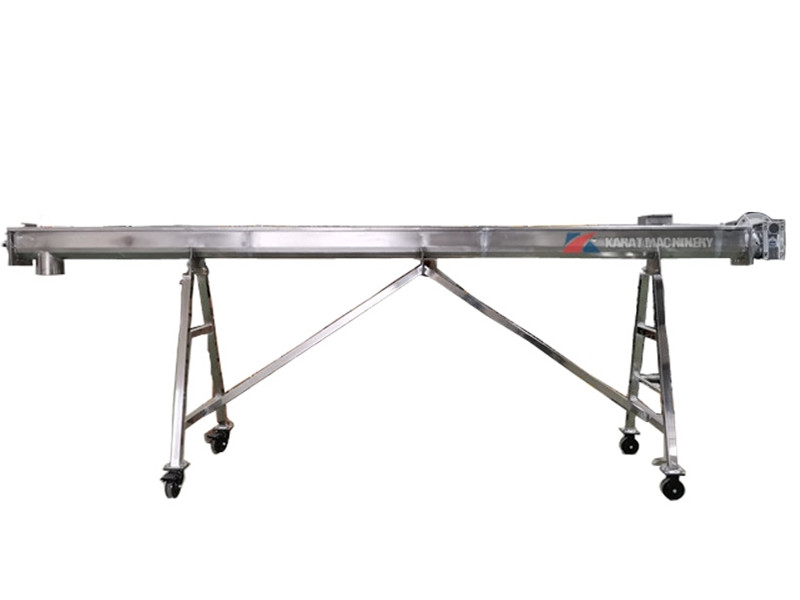

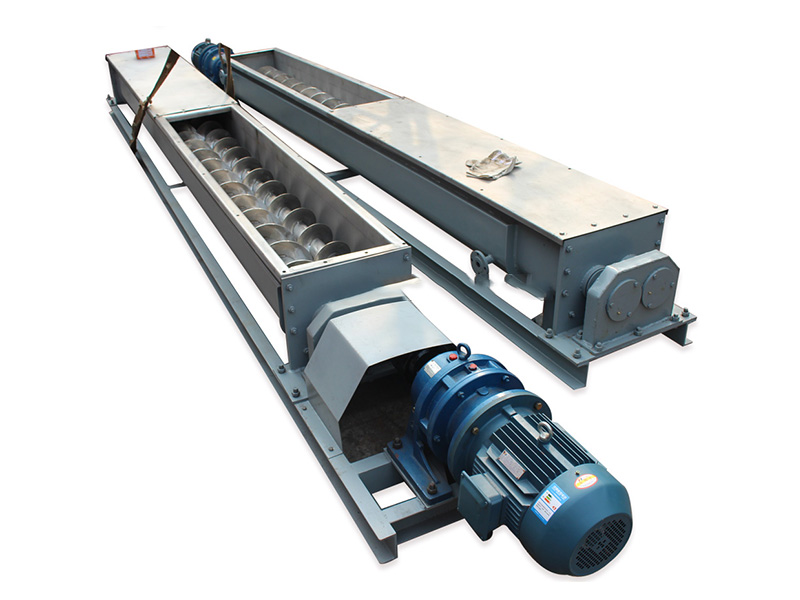

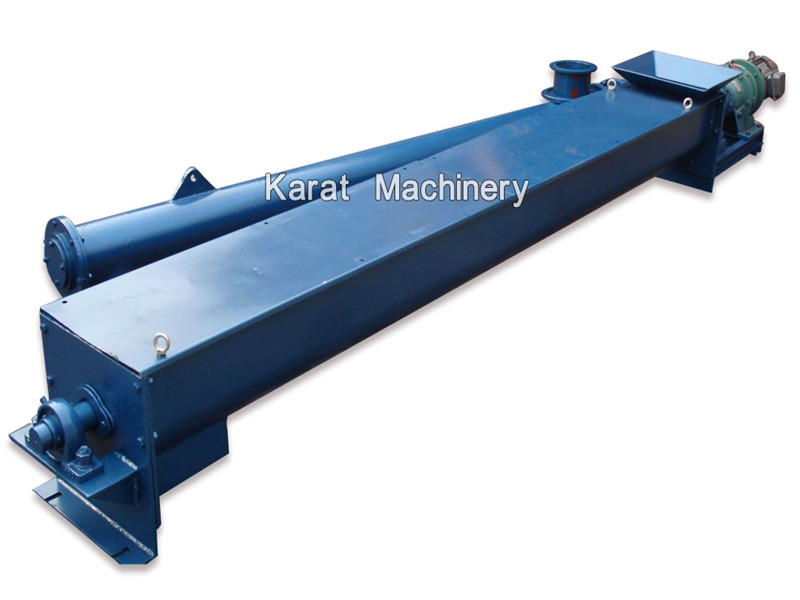

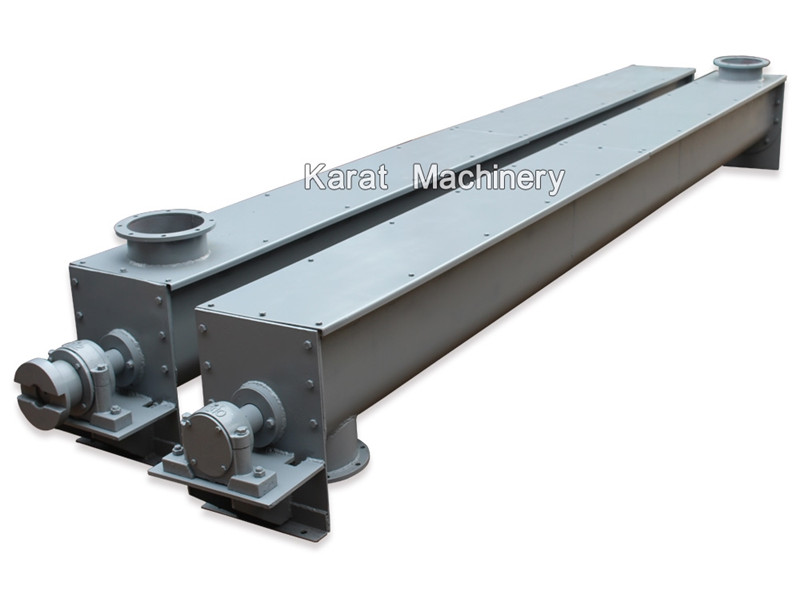

Screw conveyor
Screw conveyor is the main units for mechanical transport operation of various departments of industry and agricultures and can be used to reduce labor intensity and improve efficiency, being applied widely. It is suitable for all industries such as building material, chemical industry, power industry, metallurgy, coal industry and grain industry and for horizontal or tilted transportation for powdery, granular and small lump materials such as coal, dust, residue, cement and grain which their temperature is less than 200β. Screw conveyor is not suitable for materials with perishable, big viscosity and easily caked.
Feature
1. Simple structure, easy operation and excellent sealing performance.
2. Small section of whole machine, being suitable for horizontal or tilted transportation.
3. Charging and Discharging can be conducted at more than one points in the middle.
The following table shows the detailed data of different models of screw conveyor for you to refer,we can also provide you customized services.
1. Simple structure, easy operation and excellent sealing performance.
2. Small section of whole machine, being suitable for horizontal or tilted transportation.
3. Charging and Discharging can be conducted at more than one points in the middle.
The following table shows the detailed data of different models of screw conveyor for you to refer,we can also provide you customized services.
| Model | Screw Diameter | Screw Rotation Speed | Inclination Angle | Conveyor Length |
| (mm) | (r/min) | (degree) | (m) | |
| GX 200 | 200 | 20, 30, 35, 45, 60, 75, 90, 120, 150, 190 | < 90 | 3~70 |
| GX 250 | 250 | |||
| GX 300 | 300 | |||
| GX 400 | 400 | |||
| GX 500 | 500 | |||
| GX 600 | 600 |
Product show

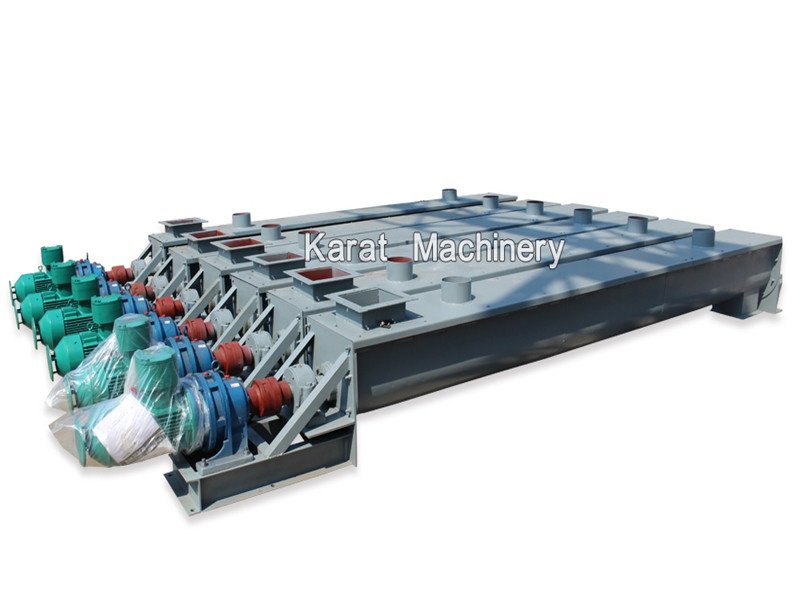

Screw conveyor consists of vibration motor,switch,timer,vibration tray,sieve frame,screw,top cover and so on. The following pictures will help you to know more about it.
Application
Screw conveyor are widely used in construction, chemical, ore, mining industry.
Screw conveyor are widely used in construction, chemical, ore, mining industry.
Company Information
Karat Machinery Equipment Co., Ltd is located in Xinxiang City--the hometown of China's vibrating screen. It is a professional manufacturer of screening and conveying equipment. Our company is specialty in the development and sales of vibration machinery, screening equipment, conveying equipment and lifting equipment. Our company produces a series of products as follows: rotary Vibrating Screen, screw conveyor, ultrasonic round separator, rectangular separator, vibration table, drum screen, standard laboratory inspection sieve, straight line vibrating screen, vibration motor, vibrating conveyor, feeding machine, hoisting equipment, belt conveyor. All of our production are widely used in food, pharmaceutical, chemical, metallurgy, building materials, mining, thermoelectric, environmental protection and other fields. And our company's business covers all parts of the country, and is exported to the United States, France, Canada, Russia, Australia, Japan, Singapore, Malaysia, India, Vietnam and other countries.
Karat Machinery Equipment Co., Ltd is located in Xinxiang City--the hometown of China's vibrating screen. It is a professional manufacturer of screening and conveying equipment. Our company is specialty in the development and sales of vibration machinery, screening equipment, conveying equipment and lifting equipment. Our company produces a series of products as follows: rotary Vibrating Screen, screw conveyor, ultrasonic round separator, rectangular separator, vibration table, drum screen, standard laboratory inspection sieve, straight line vibrating screen, vibration motor, vibrating conveyor, feeding machine, hoisting equipment, belt conveyor. All of our production are widely used in food, pharmaceutical, chemical, metallurgy, building materials, mining, thermoelectric, environmental protection and other fields. And our company's business covers all parts of the country, and is exported to the United States, France, Canada, Russia, Australia, Japan, Singapore, Malaysia, India, Vietnam and other countries.
.jpg)
.jpg)
Packaging & Shipping
Screw conveyor is packed by wooden case or according to the customer's requirements.
.jpg)
Customer visit
We have many customers from all over the world and we have become very good friends in good communication.
FAQ
Q: What information do I need to provide for screw conveyor?
A: 1. Material’s name, bulk density, and water content
2. Capacity you required___t/h
3. Conveying length___meters
4. Is it a horizontal or inclined? What’s the angle if inclination.
5. Voltage and frequency
Q: How long for the delivery time?
A: 5-10 working days for conventional products.
Q: How long for warranty time?
A: 12 months from the shipping date.
| Model | Screw Diameter | Screw Pitch | n---Rotation Speed (r/min), Allowable Deviation < 10% Q---Capacity (m3/h), Filling Factor = 0.33 |
|||||||
| (mm) | (mm) | n | Q | n | Q | n | Q | n | Q | |
| LS 160 | 160 | 160 | 112 | 8 | 90 | 7 | 71 | 6 | 50 | 4 |
| LS 200 | 200 | 200 | 100 | 14 | 80 | 12 | 63 | 10 | 50 | 7 |
| LS 250 | 250 | 250 | 90 | 24 | 71 | 20 | 56 | 16 | 45 | 13 |
| LS 315 | 315 | 315 | 80 | 34 | 63 | 26 | 50 | 21 | 40 | 16 |
| LS 400 | 400 | 355 | 71 | 64 | 56 | 52 | 45 | 41 | 36 | 34 |
| LS 500 | 500 | 400 | 63 | 100 | 50 | 80 | 40 | 64 | 32 | 52 |
| LS 630 | 630 | 450 | 50 | 145 | 40 | 116 | 32 | 94 | 25 | 80 |
| LS 800 | 800 | 500 | 40 | 208 | 32 | 165 | 25 | 130 | 20 | 110 |
| LS 1000 | 1000 | 560 | 32 | 300 | 25 | 230 | 20 | 180 | 16 | 150 |
1. Simple structure, easy operation.
2. Small section of whole machine, being suitable for horizontal or tilted transportation.
3. Stable transportation so as to play a good role under the condition of limited space.
4. Excellent sealing performance so as to have advantages under the situation that has more dust and made higher request on the environment and to avoid the dust phenomenon in the process of transportation.
2. Small section of whole machine, being suitable for horizontal or tilted transportation.
3. Stable transportation so as to play a good role under the condition of limited space.
4. Excellent sealing performance so as to have advantages under the situation that has more dust and made higher request on the environment and to avoid the dust phenomenon in the process of transportation.
It is composed of motor,U-shaped groove and screw blade and suitable for all industries such as building material,chemical industry,power industry,metallurgy,coal industry and grain industry and for horizontal or tilted transportation for powdery,granular and small lumpmaterials such as coal,dust,residue,cement and grain which their temperature is less than 200β.Screw conveyor is not suitable for materials with perishable,big viscosity and easily caked.
