Working principle:

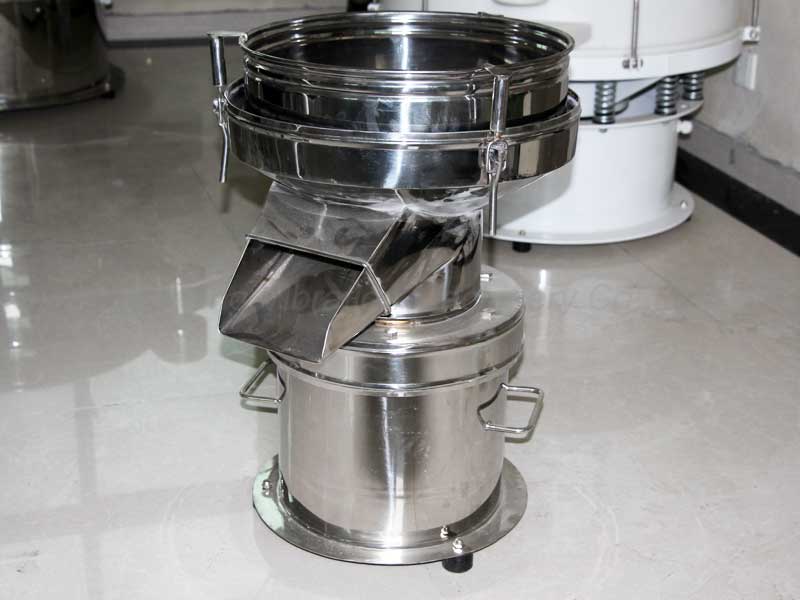

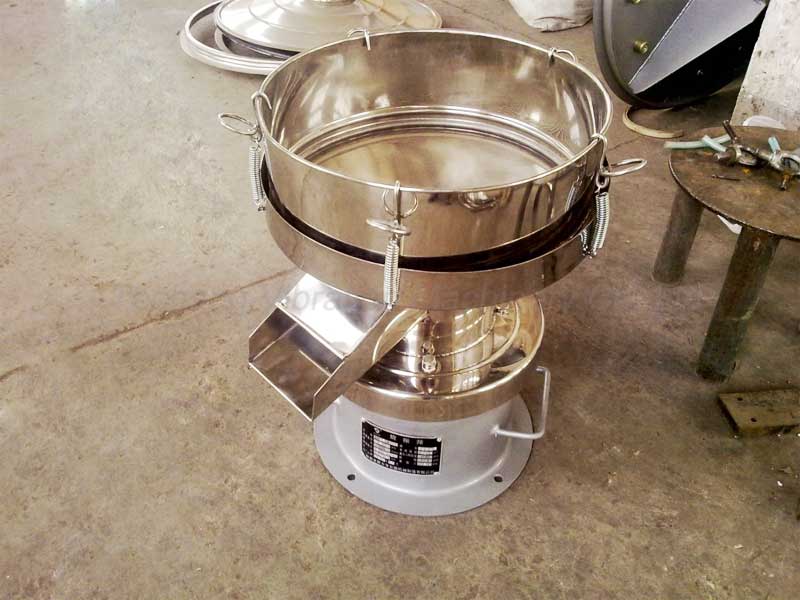

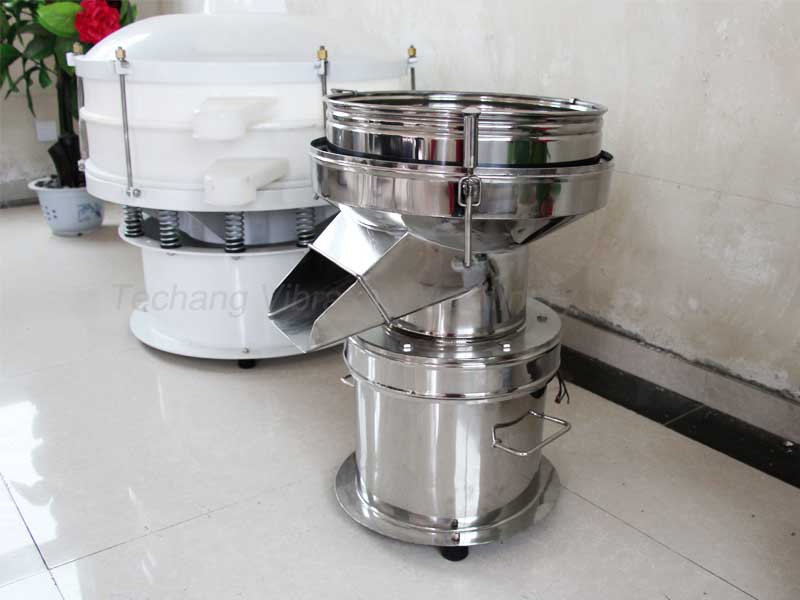

The 450 Type Vibration Filter is a small vibrating screen filter with low noise and high efficiency, and a single-deck vibrating screen integrating powder grading and liquid filtration. It is applicable to single-deck screening and filtration by manufacturers of various industries, handling materials with small production capacity or less impurities.
Characteristics:
1、The 450 Type Vibration Filter is compact, light weight, can be moved arbitrarily, applicable to any grain, powder and mucus.
2、The mesh is not blocked, no dust fly, can be screened to 400 meshes. Stainless steel (304) material,
3、High screening · filtration efficiency, no space occupation.
The 450 Type Vibration Filter is a small vibrating screen filter with low noise and high efficiency, and a single-deck vibrating screen integrating powder grading and liquid filtration. It is applicable to single-deck screening and filtration by manufacturers of various industries, handling materials with small production capacity or less impurities.
Characteristics:
1、The 450 Type Vibration Filter is compact, light weight, can be moved arbitrarily, applicable to any grain, powder and mucus.
2、The mesh is not blocked, no dust fly, can be screened to 400 meshes. Stainless steel (304) material,
3、High screening · filtration efficiency, no space occupation.
| order number | name | unit | parameter | |
| 1 | Standard screen frame | floor | 1 | |
| 2 | Screen frame diameter | mm | φ450 | |
| 3 | sieve size | mm | 0.038-5 | |
| 4 | noise | dB | ≤50 | |
| 5 | amplitude | mm | ≤5 | |
| 6 | Electric machinery | Voltage | V | 380 |
| speed | r/min | 1440 | ||
| power | Kw | 0.12 | ||
| 7 | external dimensions | mm | 360×300×470 | |
| 8 | Machine weight | kg | 42 | |
